The system is programmed to only transfer fuel from the rear tank if the main tank is below a quarter tank and/if the rear tank has fuel. It will then automatically transfer fuel from the Aux. tank to the Main tank until the main tank reaches 3/4 capacity or the Aux. tank is empty.

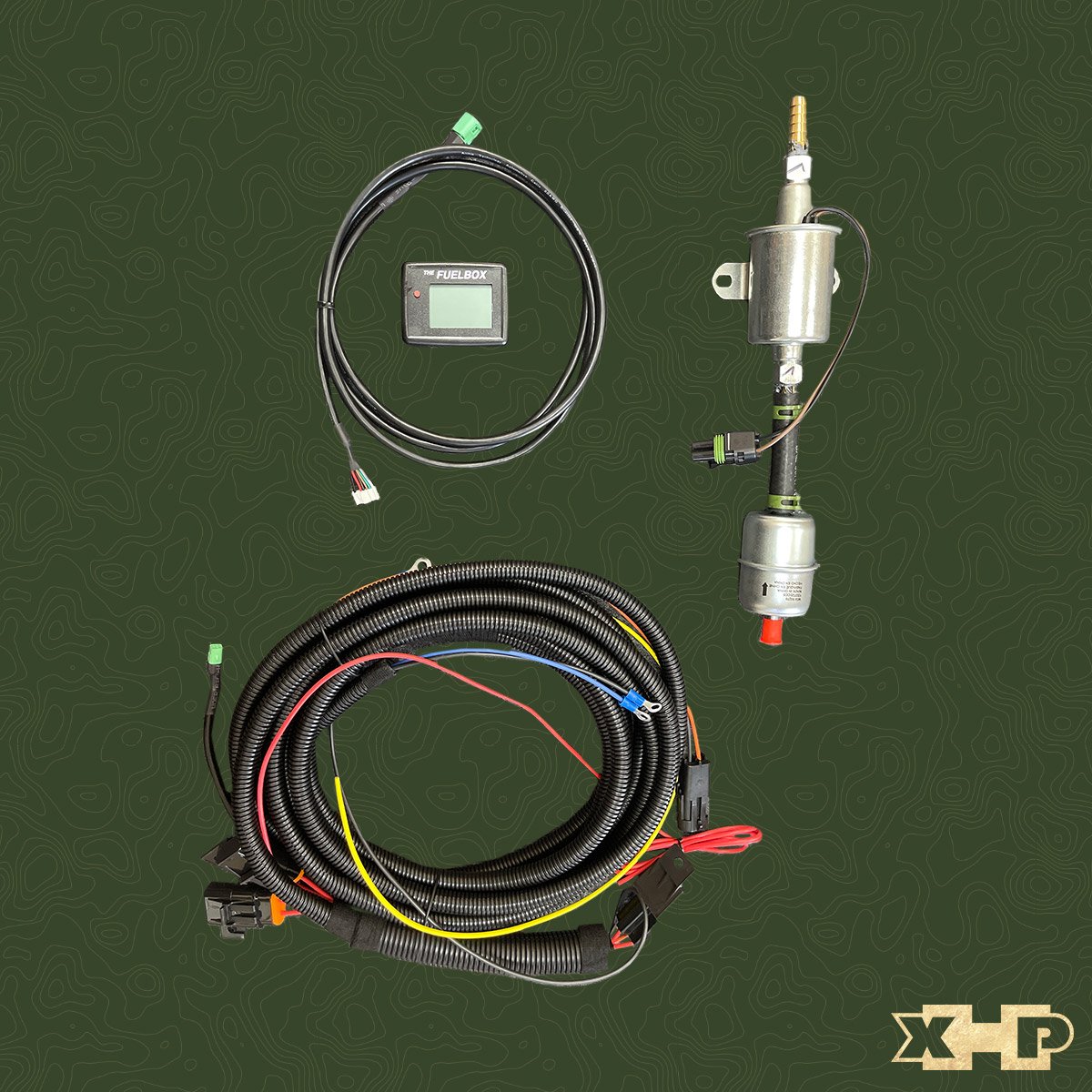

The transfer pump is connected to the Aux tank pickup and connected to the Main tank at the sending unit plate or in the Main tank filler neck. The Aux tank will no longer need an engine return fuel connection and this fitting can typically be capped off. The pump has the outlet side labeled and must be pointed towards the Main tank. The inlet side has a predicted that is plumbed to the Aux. tank pickup.
Both senders must be approx 30-230 ohm resistance. and must have a good ground connection to the vehicle.
The wiring is as follows:
- Red– 12v Igntion.
- Black – Ground
- Yellow – splice into Main tank sending unit signal wire.
- Green 7 terminal connector – to system monitor
- Orange / Black – transfer pump
- Blue / Black – Aux Tank sending unit
